DN 25 ic card smart water meter prepaid
Product Description

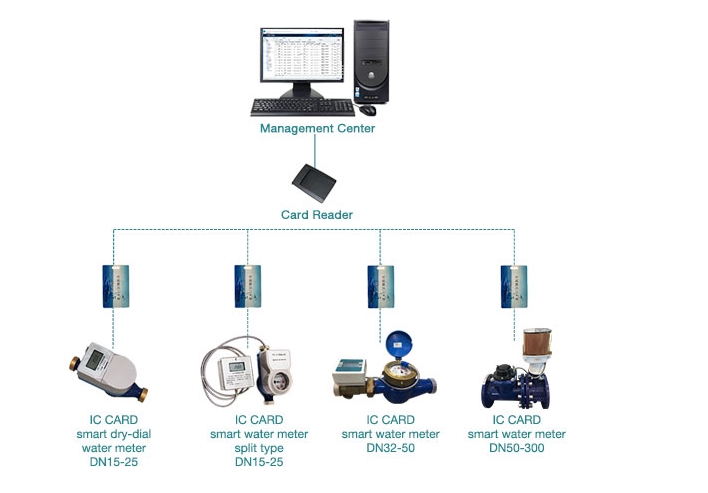

PREPAID SYSTEM INTRODUCTION
Overviews
The IC Card series Water Meter is a kind of prepaid and Smart Water Meter. It’s designed and manufactured by our company and famous design companies both domestic and aboard according to the international standard.
Advantage of the system
·OEM, language display and currency unit display can be customized, and company name can be added to the software.
·The data will be saved automatically after exiting the system.
·Simple management and user card making, easy to query consumption records.
·Invoice printing, providing payment voucher to users in the most common form in the local area.
Brief introduction
The prepaid water meter have mechanical and electronic readings. It is used to control users overspend by prepaying with an IC card. Pay in advance and then use water get rid of the inconvenience of on-site Meter Reading and charging.
Product features
·Our IC Card Prepaid Water Meter has high accuracy
·Type:screw,joint,split
· Material: Brass
·Scenes to be used: garden, housing,commercial, general household, residential building,apartment,municipality, household, potable
·Waterproof level:IP68
·Technical data conform to international standard ISO 4064.
·Accuracy:class b
Fitting:Connctor,PCB,Valve control,Reading device,Adapter,Actuator,Battery operated,Pipe fitting,Connector fitting,Coupling,Pointer,Components,Counter,Rgister
·Communication:IC card reading,Private protocol
Main technical data
(Ⅰ) Technical specifications
Item Unit Details Nominal diameter mm 15 20 25 Q3/Q1 R80/R100 Overload flow(Q4) m³/h 3.125 5 7.875 Nominal flow(Q3) m³/h 2.5 4 6.3 Transitional flow(Q2) m³/h 0.05 0.08 0.13 Minimum flow(Q1) m³/h 0.031 0.05 0.08 Accuracy class Class 2 Maximum indication m³ 99999 Temperature class T30,T90 Pressure class MAP 10/MAP16 Pressure loss class ΔP63 Flow prefile sensitivity class U10/D5 environmental class Class B Electromagnetic environment class E1 Static current uA <10
·The data will be saved automatically after exiting the system.
·Simple management and user card making, easy to query consumption records.
·Invoice printing, providing payment voucher to users in the most common form in the local area.
·Type:screw,joint,split
· Material: Brass
·Scenes to be used: garden, housing,commercial, general household, residential building,apartment,municipality, household, potable
·Waterproof level:IP68
·Technical data conform to international standard ISO 4064.
·Accuracy:class b
Fitting:Connctor,PCB,Valve control,Reading device,Adapter,Actuator,Battery operated,Pipe fitting,Connector fitting,Coupling,Pointer,Components,Counter,Rgister
·Communication:IC card reading,Private protocol
