High Quality Crane Limit Switch, Crane Electric Switch, Crane Micro Switch Suppliers in China

Home > Products > Data Terminal Units > Double Bridge Hoist Crane Limit Switch

Double Bridge Hoist Crane Limit Switch

Double Bridge Hoist Crane Limit Switch

    Payment Type: L/C,T/T,Money Gram,Western Union
    Terms of Trade: FOB,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days
    Packaging: individual package
    Productivity: 100000PCS/Year
    Brand: OEM
    Place of Origin: HENAN ,CHINA
    Certificate: CE
    HS Code: 85389000
    Port: QINGDAO

Basic Info

Model No.: DC001-LT

Product Description

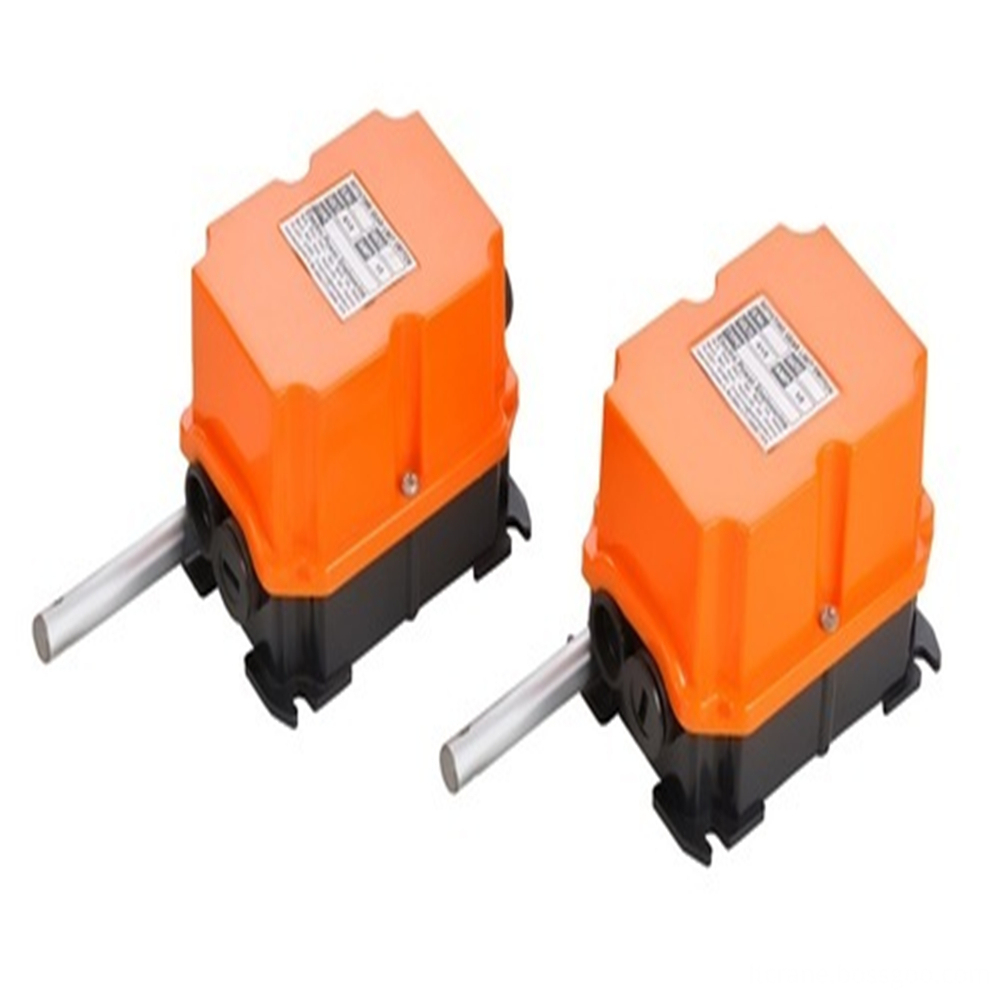

Double Bridge Hoist Crane Limit Switch

Product Description


1.Switch features

1.Small size
2.Large transmission ratio
3.High accuracy
4.Convenient installation and debugging versatility and so on

ITEM:SX Data
Housing Aluminum
Rating load 10A/250VAC
Rated Voltage AC 220/380V
Rated Current 6~10A
Operating speed 1mm-50cm/s
Operating frequency Mechanical 120times/min
Electrical 30times/min
Insulation resistance 100MΩ(Above)DC500V
Contact resistance 25MΩ(intial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s²
Misoperation 300m/s²
Life Electrical 100,000above
Mechanical 1,000,000above
Protection degree IP65
Operation temperature "-40'C~55'C
Operating humidity ≤ 90%RH
Repeatable Positioning Accuracy
Angle Error of Memory Cam ≤0.005rad (0.3°)
Potentiometer of Sensor Standard Resistance 5KΩ, Independent Linearity 0.1% Mechanical Turning Angle 360°(continuously)
Crane Limit Switch-LT

EOT Crane Limit Switches-LT

3.Standard ratio

Ratio 1:10 1:15 1:20 1:30 1:45 1:60
1:84 1:90 1:126 1:180 1:270

4.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.


overhead-crane-protection-devices

Our company

1. Our History:
LITE Crane Co., LTD has focused on top quality crane parts for over 14 years in China. We started as a
small operation, but now have become one of the leading suppliers in the crane industry in China. Today, LITE Crane Co., LTD has been one of the top producers of quality crane and crane parts, such as: electric hoist, single, double girder bridge, gantry, grab, casting, explosion-proof crane series and
accessories.

2. Our Factory:
LITE Crane Co., LTD is located in Xinxiang, Henan Province China. The company covers an area of 680 thousand square meters and owns more than 2700 employees. The annual sales of LITE Crane Co., LTD is 1.6
billion USD, there are more than 600 sales agencies at home and abroad and more than 180 middle& senior
engineering and technical personnel who are in charge of design and development of all products and also
own the development center of their new technology and products.

3.Our Product:
Our Products includes the following:
1, Crane accessories
2, Electric hoist
3, Single - beam cranes
4, Double - beam cranes
5, Bridge crane
6, Gantry crane
7.Lifting equipment and accessories
We supply crane products all over the globe to a wide range of companies worldwide.

4.Product Application:
The products are widely used in the following industry, such as power plants, nuclear power, water
conservancy, tunnels, bridges, petrochemical, metallurgy, construction, open-air warehouse, wharf,
workshop ...

5.Our Certificate:
Our company is a member of China Crane Association and vice chairman company of China Heavy Machinery
Association. It owns the production licenses of electric hoist, single & double-girder crane, the safety
of the approval certificate of manufacturing, installation and maintenance, the safety approval
certificate of the manufacturing of 320T bridge crane, portal crane and 280Tcasting crane.
The company has passed the quality system certification of GB/T19001 -2008/IS09001:2008, the
environmental management system certification of GB/T24001-2004/ISO14001:2004 and the occupational
health and safety management system certification GB/T28001-2001.

6.Production Equipment:
There are 1600 units of all kinds of processing equipment which can independently accomplish all the
processes such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting,
bending, welding, testing and heat treatment.

7.Production Market:
Our products are sold to more than 30 provinces, municipalities and autonomous regions in China, and
also exported to Australia, Vietnam, India, Thailand and some Southeast Asian countries. The annual
sales of double-girder and portal cranes is more than 3600 units, more than 23000 units single-girder
cranes, about 23000 units single-girder & double-girder electric hoist and accessories. The production
and sales of the single-girder cranes has lead the nation for seven consecutive years and the per capita
output and economic benefits are among the best in the same industry.

8.Our service:
Besides our existing molded products, LITECrane Co., LTD also can produce products according to the
drawings or samples from our customers. We control the product quality critically for every step during
the manufacturing from custom.

Lite Crane Factory Show





Shandong Lite Electrical Co.,Ltd



Vice President of China Heavy Machinery Association, China's green environmental protection and energy conservation enterprise, China's first single beam crane enterprise, more than 2,700 employees. In 2017, the company has annual sales of 2.8 billion yuan, 106 world sales agencies, more than 280 middle and senior engineers, world-class high-end material handling equipment for design and development, and 110 new technologies and product development centers with innovative technologies.
Constant temperature processing workshopRobot welding process
Metallurgical craneAs a high-tech enterprise, LITE continues to innovate its technology, world-class product technology, using environmental aerospace, power plants, railways, terminals, mines, factories.Production equipment capacity: the company produces world-class intelligent robot welding equipment, intelligent machining center manufacturing, MG gantry crane 5t-280t, double girder bridge crane 5t-680t, shipbuilding crane 5t-2800t, CD electric hoist 0.25t-120t It is one of the top 50 enterprises in China.Sincerely hope to cooperate with you and come.

Robot welding1
D

For your service: high quality and low price products, only need to provide workshop drawings, marked tonnage size, lifting height, span, voltage, use environment and process, our company will design according to your needs, precision manufacturing for you Cooperative services, Recruitment agents around the world. Technical exchanges import and export cooperation, a lifelong friendship, welcome you to visit China.
